Toyota unveils a revolutionary EV battery layout that uses a crumple‑zone to absorb crash forces, protecting the costly pack. Learn more now!
Toyota is testing a fresh approach to electric‑vehicle battery placement that could make future EVs far safer in crashes. Instead of locking the battery pack rigidly to the chassis, the Japanese automaker proposes a design that lets the pack shift minutely within a purpose‑built crumple zone during an impact.
Why Battery Placement Matters
In traditional EVs, the battery is bolted firmly to the vehicle’s frame. While this maximises structural rigidity, it also means that any collision force is transmitted directly to the battery cells – the most expensive and, if damaged, potentially hazardous component of an electric car.
Side‑impact crashes are especially problematic because the distance from the doors to the battery is often narrow, leaving little room for energy‑absorbing structures.
How Toyota’s Crumple‑Zone Works

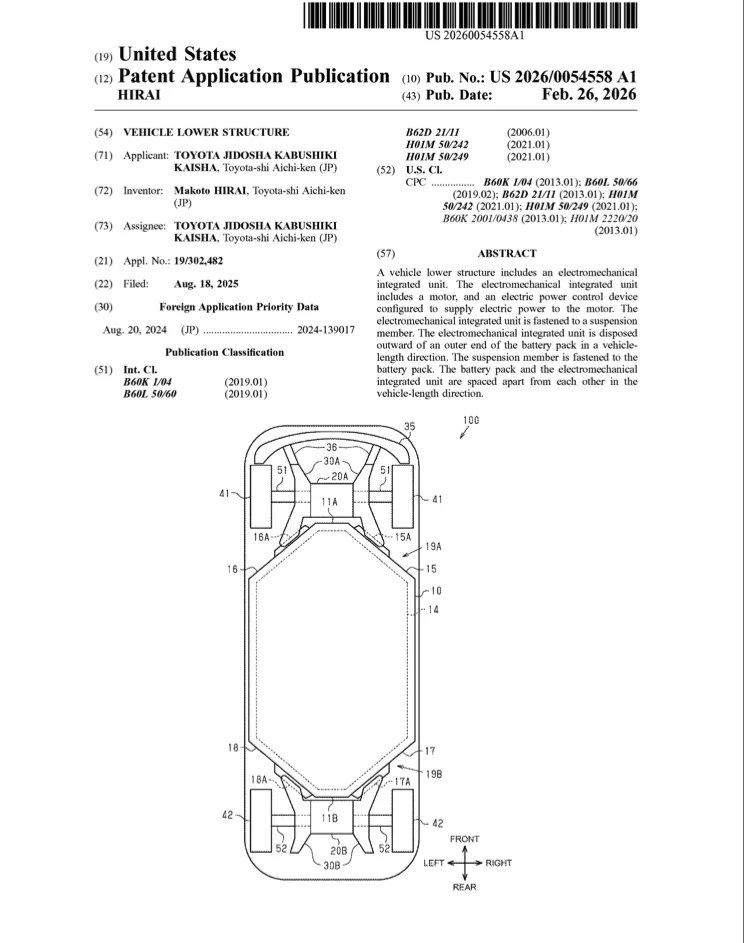

According to a patent filed in August 2025, the new layout positions the battery in the lower frame but does not fix it as a solid block. Instead, the pack sits inside a sub‑frame that is linked to the suspension and reinforcement members. These surrounding elements are engineered to deform first, absorbing and redirecting the impact energy.
When a side collision occurs, the surrounding structure yields in a controlled manner, allowing the battery to move a few millimetres. This tiny, managed displacement reduces the sudden shock that would otherwise slam into the battery casing and cells.
Key Features of the Design
- Dedicated deformation zone: A built‑in “crumple zone” for the battery that acts like the front‑end crush structures of conventional cars.
- Side‑impact focus: Engineered specifically to protect the battery when the impact comes from the side, a known weak spot in many EVs.
- Controlled movement: The pack can shift only within a tightly limited range, preserving overall vehicle stiffness during normal driving.
- Reduced repair costs: By mitigating battery damage, owners could avoid expensive pack replacements after a crash.
Potential Impact on EV Safety
If adopted for production models, Toyota’s approach could shift the industry’s safety paradigm from “resist the force” to “manage the force.” Most manufacturers today rely on ultra‑rigid battery mounts and heavy reinforcement bars to keep the pack in place. Toyota’s concept instead absorbs the impact energy before it reaches the pack.
While the idea is still in the patent stage and has not yet appeared on a mass‑produced vehicle, it signals a promising direction for future EV safety engineering. A battery that can survive side collisions with less damage would not only improve occupant safety but also bolster consumer confidence in electric cars.
What’s Next?
Toyota has not announced a timeline for rolling this technology out to its production line. However, the company’s willingness to publicly disclose the patent suggests that rigorous testing and validation are underway.
Industry observers will be watching closely to see whether this crumple‑zone battery concept makes the leap from drawings to the road, potentially setting a new benchmark for electric‑vehicle crash safety worldwide.
